HERMES

HM

Hermes Mulching Machine

two swing disks

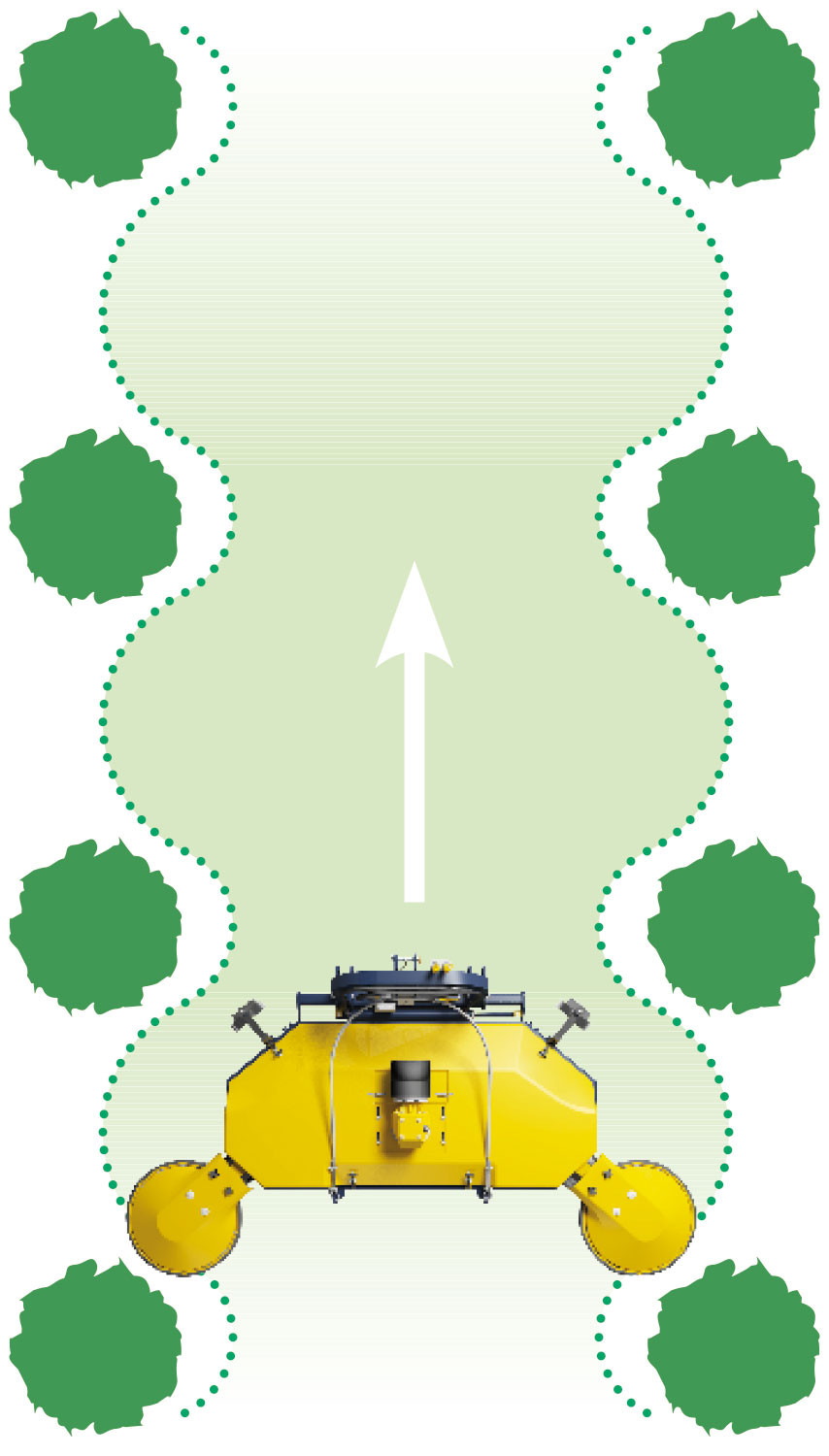

Flexibility is the word that best describes HM machines with two swing disks. The two swing disks ensure a variable swath, ideal for farms that have varying widths between the rows of trees, plants, etc. Grass is cut with optimal results by passing just once between rows and, if required, between one tree or plant and the next. These machines are ideal for organic farming, where farms cannot use chemicals and must cut grass mechanically.
The transfer case is positioned in the middle (except in the HM252L model), the machine needs only drive once through the middle of a row of trees or plants.
To offload cut grass in any situation, HM machines with two swing disks feature a transfer case, built in-house, with particular characteristics: a double output that allows the blades to rotate in two opposite directions. Three of the blades rotate clockwise (four in the HM302 model), while the other two (3 in the HM302 model), rotate anticlockwise. Considering that these machines can cut up to a width of 3.75 m, this feature is essential: cut grass is offloaded uniformly and distributed at both sides of the machine.
As the other machines in this series, in the HM with two swing disks the transmission works with belts and pulleys. These machines have been designed to be easy to maintain, therefore, changing a belt is an easy operation to perform. Staff do not require any specific knowledge and belts can be replaced easily and quickly by acting on the screws.

DATI TECNICI: SELEZIONA IL MODELLO

Working width of the main body cm 155
Tot. working width (with standard swing disk Ø45 cm) cm 235
Tot. working width (with swing disk Ø55 cm) cm 255
Tot. working width (with swing disk Ø65 cm) cm 275
Number of blades of the main body/swing disk 3/2
3 point linkage ISO I/II
HP CV 30
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel S
Roller/Roller O
Wheel/Roller n.d.
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 2x150
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Side shift (front machine) n.d.
Extra side shift (approx. 20 cm) n.d.
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump n.d.
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 163
Weight (standard version) kg 500
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 202

Working width of the main body cm 175
Tot. working width (with standard swing disk Ø45 cm) cm 255
Tot. working width (with swing disk Ø55 cm) cm 275
Tot. working width (with swing disk Ø65 cm) cm 295
Number of blades of the main body/swing disk 3/2
3 point linkage ISO I/II
HP CV 33
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel S
Roller/Roller O
Wheel/Roller n.d.
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 216
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Side shift (front machine) n.d.
Extra side shift (approx. 20 cm) n.d.
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 183
Weight (standard version) kg 538
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 222

Working width of the main body cm 200
Tot. working width (with standard swing disk Ø45 cm) cm 280
Tot. working width (with swing disk Ø55 cm) cm 320
Tot. working width (with swing disk Ø65 cm) cm 295
Number of blades of the main body/swing disk 3/2
3 point linkage ISO I/II
HP CV 35
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel S
Roller/Roller O
Wheel/Roller n.d.
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 2x190
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Side shift (front machine) n.d.
Extra side shift (approx. 20 cm) n.d.
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 208
Weight (standard version) kg 590
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 252C

Working width of the main body cm 200
Tot. working width (with standard swing disk Ø45 cm) cm 280
Tot. working width (with swing disk Ø55 cm) cm 320
Tot. working width (with swing disk Ø65 cm) cm 295
Number of blades of the main body/swing disk 3/2
3 point linkage ISO I/II
HP CV 35
Angle gear central n.d.
Angle gear left side S
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel n.d.
Roller/Roller O
Wheel/Roller S
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 2x210
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Side shift (front machine) n.d.
Extra side shift (approx. 20 cm) n.d.
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 208
Weight (standard version) kg 590
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 252L

Working width of the main body cm 255
Tot. working width (with standard swing disk Ø45 cm) cm 335
Tot. working width (with swing disk Ø55 cm) cm 355
Tot. working width (with swing disk Ø65 cm) cm 375
Number of blades of the main body/swing disk 5/2
3 point linkage ISO I/II
HP CV 40
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel S
Roller/Roller O
Wheel/Roller n.d.
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 2x210
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Side shift (front machine) n.d.
Extra side shift (approx. 20 cm) n.d.
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 263
Weight (standard version) kg 780
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 302
