Hermes Mulching Machine

one swing disk

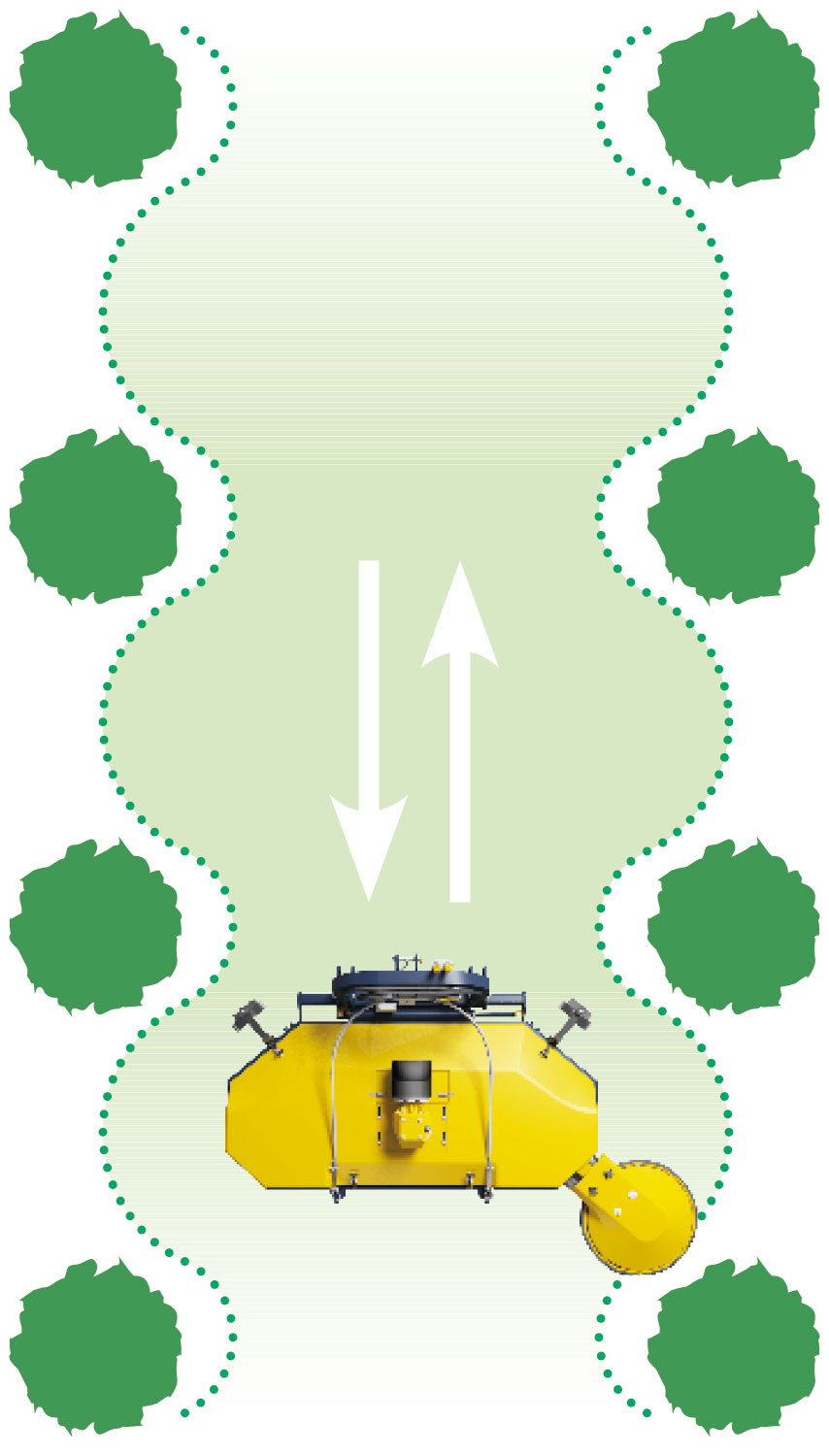

The HM with one swing disk is ideally suited where the machine needs to pass twice between rows of trees, plants, vines, etc. The swing disk has a spring return that makes the disk retract when it hits an obstacle; once the obstacle is passed, the disk returns in position. The option to adjust the cutting height hydraulically, while maintaining the spring return, makes the machine easier to operate. The swing disk has a plate below the blades and an articulated arm that allows the disk to move vertically (approx. 10 cm), to adjust should it hit the ground.
HM machines with one swing disk (except for the HM265C), feature the transfer case on the left in order to allow the machine to keep as much as possible to the right; ideal when cutting grass under trees with very low, long branches.
Hermes’s spirit of innovation is expressed at its best in the HM301L Energy model of this series: this machine is particularly suited for solar panel maintenance, as the side shift of over 2.90 m from the middle of the tractor makes it ideal to cut grass underneath solar panels. With this machine, Hermes once again proves its ability to offer solutions for new issues by building technologically advanced machines.
HM machines can be fitted with swing disks of different diameters: 45 cm, 55 cm and 65 cm. This allows to adapt the swing disk to the cutting distance required, and choose the most appropriate overall cutting width.

DATI TECNICI: SELEZIONA IL MODELLO

Working width of the main body cm 115
Tot. working width (with standard swing disk Ø45 cm) cm 155
Tot. working width (with swing disk Ø55 cm) cm 165
Tot. working width (with swing disk Ø65 cm) cm 175
Number of blades of the main body/swing disk 2/1
3 point linkage ISO I/II
HP CV 20
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 n.d.
Front version for front PTO 1,000 revs/min-1 n.d.
Wheel/Wheel n.d.
Roller/Roller O
Wheel/Roller S
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 135
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Mechanic side shift front machine n.d.
Hydraulic side shift front machine n.d.
Extra side shift (approx. 20 cm) n.d.
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump n.d.
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 123
Weight (standard version) kg 355
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 161

Working width of the main body cm 155
Tot. working width (with standard swing disk Ø45 cm) cm 195
Tot. working width (with swing disk Ø55 cm) cm 205
Tot. working width (with swing disk Ø65 cm) cm 215
Number of blades of the main body/swing disk 3/1
3 point linkage ISO I/II
HP CV 22
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel n.d.
Roller/Roller O
Wheel/Roller S
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 175
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Mechanic side shift front machine O
Hydraulic side shift front machine O
Extra side shift (approx. 20 cm) O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump n.d.
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 163
Weight (standard version) kg 410
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 201

Working width of the main body cm 175
Tot. working width (with standard swing disk Ø45 cm) cm 215
Tot. working width (with swing disk Ø55 cm) cm 225
Tot. working width (with swing disk Ø65 cm) cm 235
Number of blades of the main body/swing disk 3/1
3 point linkage ISO I/II
HP CV 25
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel n.d.
Roller/Roller O
Wheel/Roller S
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 195
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Mechanic side shift front machine O
Hydraulic side shift front machine O
Extra side shift (approx. 20 cm) O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 183
Weight (standard version) kg 420
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 221

Working width of the main body cm 200
Tot. working width (with standard swing disk Ø45 cm) cm 240
Tot. working width (with swing disk Ø55 cm) cm 250
Tot. working width (with swing disk Ø65 cm) cm 260
Number of blades of the main body/swing disk 3/1
3 point linkage ISO I/II
HP CV 30
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel n.d.
Roller/Roller O
Wheel/Roller S
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 210
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Mechanic side shift front machine O
Hydraulic side shift front machine O
Extra side shift (approx. 20 cm) O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 208
Weight (standard version) kg 485
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 251

Working width of the main body cm 245
Tot. working width (with standard swing disk Ø45 cm) cm 280
Tot. working width (with swing disk Ø55 cm) cm 290
Tot. working width (with swing disk Ø65 cm) cm 300
Number of blades of the main body/swing disk 3/1
3 point linkage ISO I/II
HP CV 35
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel n.d.
Roller/Roller O
Wheel/Roller S
Ø height adjustable rear roller mm 159
Maximum side shift from middle of tractor cm 255
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Mechanic side shift front machine O
Hydraulic side shift front machine O
Extra side shift (approx. 20 cm) O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 254
Weight (standard version) kg 577
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 291

Working width of the main body cm 265
Tot. working width (with standard swing disk Ø45 cm) cm 305
Tot. working width (with swing disk Ø55 cm) cm 315
Tot. working width (with swing disk Ø65 cm) cm 325
Number of blades of the main body/swing disk 4/1
3 point linkage ISO I/II
HP CV 35
Angle gear central S
Angle gear left side n.d.
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel n.d.
Roller/Roller O
Wheel/Roller S
Ø height adjustable rear roller mm 2x159
Maximum side shift from middle of tractor cm 270
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Mechanic side shift front machine O
Hydraulic side shift front machine O
Extra side shift (approx. 20 cm) n.d.
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 273
Weight (standard version) kg 585
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 301C

Working width of the main body cm 265
Tot. working width (with standard swing disk Ø45 cm) cm 305
Tot. working width (with swing disk Ø55 cm) cm 315
Tot. working width (with swing disk Ø65 cm) cm 325
Number of blades of the main body/swing disk 4/1
3 point linkage ISO I/II
HP CV 35
Angle gear central n.d.
Angle gear left side S
Front version for front PTO 540 revs/min-1 O
Front version for front PTO 1,000 revs/min-1 O
Wheel/Wheel n.d.
Roller/Roller O
Wheel/Roller S
Ø height adjustable rear roller mm 2x159
Maximum side shift from middle of tractor cm 280
Mechanic side shift rear machine S
Hydraulic side shift rear machine O
Mechanic side shift front machine O
Hydraulic side shift front machine O
Extra side shift (approx. 20 cm) n.d.
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Swing disk spring return S
Hydraulic cutting adjustment (spring return) O
Overall size - Length with closed disk (not valid for Mayor) cm 273
Weight (standard version) kg 585
O=Optional - nd=Non disponibile - S=Serie

 Download pdf HM 301L
