HERMES

HC

Hammer mulching machines

with one swing disk

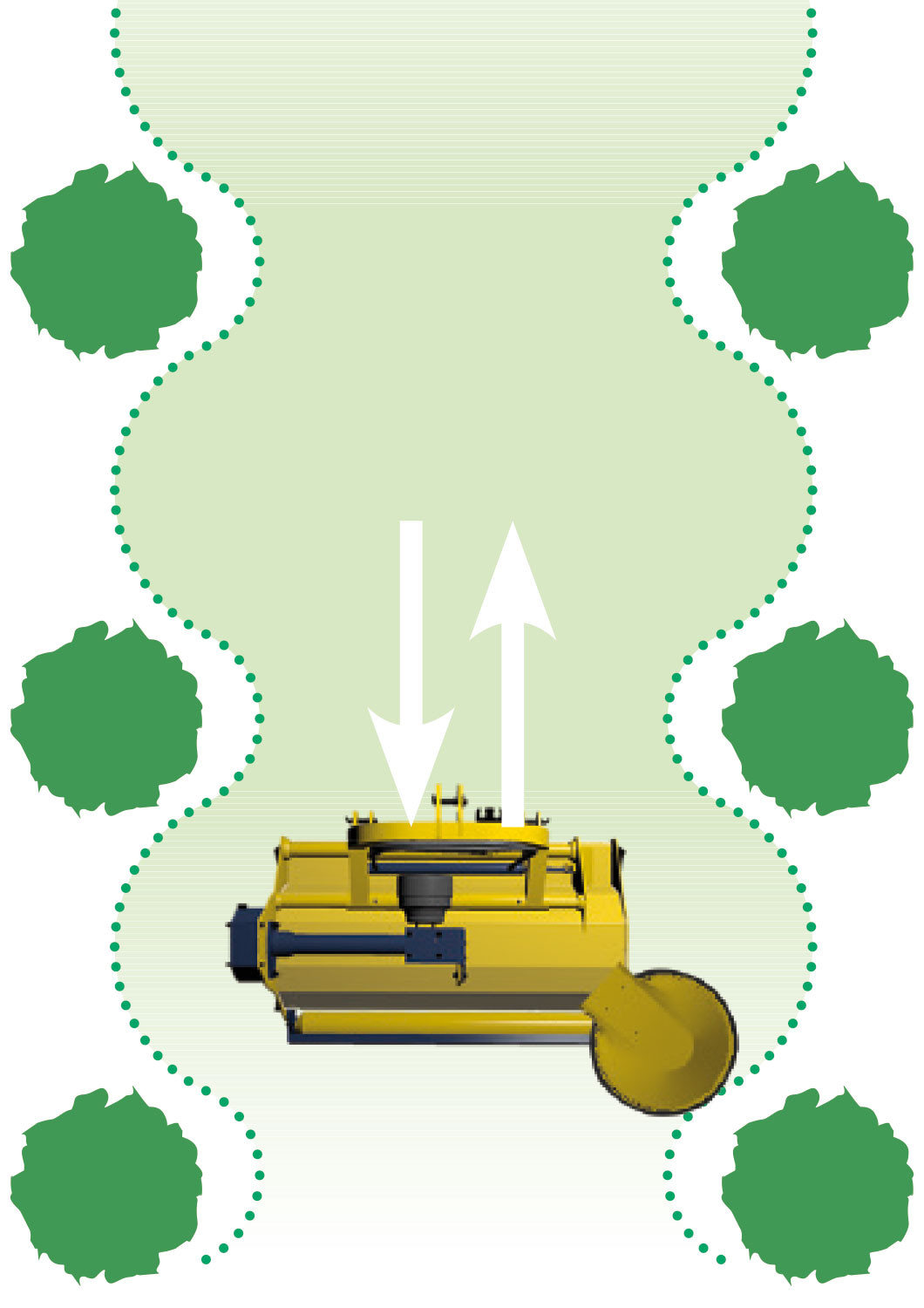

Castor with one swing disk is ideal if the rows of trees are wide apart and require the machine to pass twice through each row. The swing disk cuts grass and weeds between trees and can be adjusted in height. The swing disk with cutting blades is interchangeable with a rake, which is particularly useful in vineyards, as it provides optimal results at a fast driving speed, without damaging the bark of the plants.

When Hermes started producing Castor machines with swing disks, its customers immediately appreciated the functionality of its system. Unlike the machines made by some of its competitors, the blade in the swing disk moves using a belt. to avoid direct blows to the hydraulic engine and oil overheating. A cast iron pump (in some models), a large hydraulic oil tank (combined with a cooling radiator), a three-way valve (which allows to exclude the swing disks), are the main components of the Castor machine system, which make it ideal for any type of work.
Castor default swing disk with cutting blade can have a diameter of 45 cm or 55 cm, to adapt to cutting grass even where the distance between trees is very narrow. To meet viticulture requirements, the machine can be equipped with rakes that can clear the ground quickly and efficiently.
Today this type of machine is particularly useful because many agricultural firms need to get rid of grass mechanically, rather than using chemicals.


Castor Chianti designed for the most demanding jobs. The extra robust frame and the large blade carrying rotor ensure the machine can be used in the most demanding conditions, where a normal machine could not operate.

TECHNICAL DATA: SELECT THE MODEL

Working width with swing disk D.45 cm cm 165
Working width with swing disk D.55 cm cm 175
Working width with shoot-remover 42 cm cm 165
Number of hammers 12
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 3
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 125
Side shift from middle of tractor with swing disk D.55 cm cm 135
HP CV 25
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump n.d.
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,5
Overall size - Length with closed swing disk cm 143
Weight (standard version) kg 570
O=Optional - nd=Not available - S=Standard

 Download pdf CA 131

Working width with swing disk D.45 cm cm 165
Working width with swing disk D.55 cm cm 175
Working width with shoot-remover 42 cm cm 165
Number of hammers 12
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 3
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 125
Side shift from middle of tractor with swing disk D.55 cm cm 135
HP CV 25
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump n.d.
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,85
Overall size - Length with closed swing disk cm 143
Weight (standard version) kg 600
O=Optional - nd=Not available - S=Standard

 Download pdf CACH 131

Working width with swing disk D.45 cm cm 180
Working width with swing disk D.55 cm cm 190
Working width with shoot-remover 42 cm cm 180
Number of hammers 16
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 3
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 142
Side shift from middle of tractor with swing disk D.55 cm cm 152
HP CV 35
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump n.d.
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,5
Overall size - Length with closed swing disk cm 158
Weight (standard version) kg 600
O=Optional - nd=Not available - S=Standard

 Download pdf CA 141

Working width with swing disk D.45 cm cm 180
Working width with swing disk D.55 cm cm 190
Working width with shoot-remover 42 cm cm 180
Number of hammers 16
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 3
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 142
Side shift from middle of tractor with swing disk D.55 cm cm 152
HP CV 35
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump n.d.
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,85
Overall size - Length with closed swing disk cm 158
Weight (standard version) kg 620
O=Optional - nd=Not available - S=Standard

 Download pdf CACH 141

Working width with swing disk D.45 cm cm 190
Working width with swing disk D.55 cm cm 200
Working width with shoot-remover 42 cm cm 190
Number of hammers 16
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 3
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 150
Side shift from middle of tractor with swing disk D.55 cm cm 160
HP CV 35
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,5
Overall size - Length with closed swing disk cm 169
Weight (standard version) kg 620
O=Optional - nd=Not available - S=Standard

 Download pdf CA 151

Working width with swing disk D.45 cm cm 190
Working width with swing disk D.55 cm cm 200
Working width with shoot-remover 42 cm cm 190
Number of hammers 16
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 3
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 150
Side shift from middle of tractor with swing disk D.55 cm cm 160
HP CV 35
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,85
Overall size - Length with closed swing disk cm 169
Weight (standard version) kg 660
O=Optional - nd=Not available - S=Standard

 Download pdf CACH 151

Working width with swing disk D.45 cm cm 200
Working width with swing disk D.55 cm cm 210
Working width with shoot-remover 42 cm cm 200
Number of hammers 20
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 4
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 163
Side shift from middle of tractor with swing disk D.55 cm cm 173
HP CV 40
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,5
Overall size - Length with closed swing disk cm 178
Weight (standard version) kg 650
O=Optional - nd=Not available - S=Standard

 Download pdf CA 161

Working width with swing disk D.45 cm cm 200
Working width with swing disk D.55 cm cm 210
Working width with shoot-remover 42 cm cm 200
Number of hammers 20
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 4
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 163
Side shift from middle of tractor with swing disk D.55 cm cm 173
HP CV 40
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,85
Overall size - Length with closed swing disk cm 178
Weight (standard version) kg 700
O=Optional - nd=Not available - S=Standard

 Download pdf CACH 161

Working width with swing disk D.45 cm cm 215
Working width with swing disk D.55 cm cm 225
Working width with shoot-remover 42 cm cm 215
Number of hammers 20
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 4
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 165
Side shift from middle of tractor with swing disk D.55 cm cm 175
HP CV 40
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,5
Overall size - Length with closed swing disk cm 193
Weight (standard version) kg 770
O=Optional - nd=Not available - S=Standard

 Download pdf CA 181

Working width with swing disk D.45 cm cm 215
Working width with swing disk D.55 cm cm 225
Working width with shoot-remover 42 cm cm 215
Number of hammers 20
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 4
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 165
Side shift from middle of tractor with swing disk D.55 cm cm 175
HP CV 40
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,85
Overall size - Length with closed swing disk cm 193
Weight (standard version) kg 760
O=Optional - nd=Not available - S=Standard

 Download pdf CACH 181

Working width with swing disk D.45 cm cm 240
Working width with swing disk D.55 cm cm 250
Working width with shoot-remover 42 cm cm 240
Number of hammers 24
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 4
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 175
Side shift from middle of tractor with swing disk D.55 cm cm 185
HP CV 45
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,5
Overall size - Length with closed swing disk cm 222
Weight (standard version) kg 880
O=Optional - nd=Not available - S=Standard

 Download pdf CA 201

Working width with swing disk D.45 cm cm 240
Working width with swing disk D.55 cm cm 250
Working width with shoot-remover 42 cm cm 240
Number of hammers 24
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO I/II
Number of belts 4
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 175
Side shift from middle of tractor with swing disk D.55 cm cm 185
HP CV 45
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,85
Overall size - Length with closed swing disk cm 222
Weight (standard version) kg 860
O=Optional - nd=Not available - S=Standard

 Download pdf CACH 201

Working width with swing disk D.45 cm cm 260
Working width with swing disk D.55 cm cm 270
Working width with shoot-remover 42 cm cm 260
Number of hammers 24
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO II
Number of belts 5
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 192
Side shift from middle of tractor with swing disk D.55 cm cm 202
HP CV 50
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,5
Overall size - Length with closed swing disk cm 242
Weight (standard version) kg 970
O=Optional - nd=Not available - S=Standard

 Download pdf CA 221

Working width with swing disk D.45 cm cm 260
Working width with swing disk D.55 cm cm 270
Working width with shoot-remover 42 cm cm 260
Number of hammers 24
Number of blades 1
Maximum cutting diameter (standard machine) 5-8 (6-8)
3 point linkage ISO II
Number of belts 5
Diameter of height adjustable roller cm 159
Side shift from middle of tractor with swing disk D.45 cm cm 192
Side shift from middle of tractor with swing disk D.55 cm cm 202
HP CV 50
Mechanic side shift S
Hydraulic side shift O
Hydraulic system (tank, pump, max. valve, 3-way valve, filter) S
Hydraulic oil cooling radiator S
Swing disk with blades Ø 45/55 cm O
Rake O
Angle gear positioned low with freewheel O
Angle gear 540 revs/min-1 with freewheel S
Angle gear 1,000 revs/min-1 with freewheel O
Rear rake n.d.
Side runners adjustable in height O
Herbymulching: 100 lt herbicide tank with 12V pump O
Herbymulching: 200 lt herbicide tank with 12V pump O
Double sided reversible blades, series Y O
Front version for front PTO 540/1.000 revs/min-1 n.d.
Komby: version for front and rear PTO 540/1.000 revs/min with gearbox with automatic inverter and double freewheel for reversible tractors n.d.
Agrifruit: version with opening on the rear n.d.
Peso mazza kg 1,85
Overall size - Length with closed swing disk cm 242
Weight (standard version) kg 960
O=Optional - nd=Not available - S=Standard

 Download pdf CACH 221

Questo sito utilizza cookie, continuando a navigare acconsenti al loro impiego. Maggiori informazioni sono disponibili al link Privacy Policy.
Accetto
