TecnoFruit
Professional collection

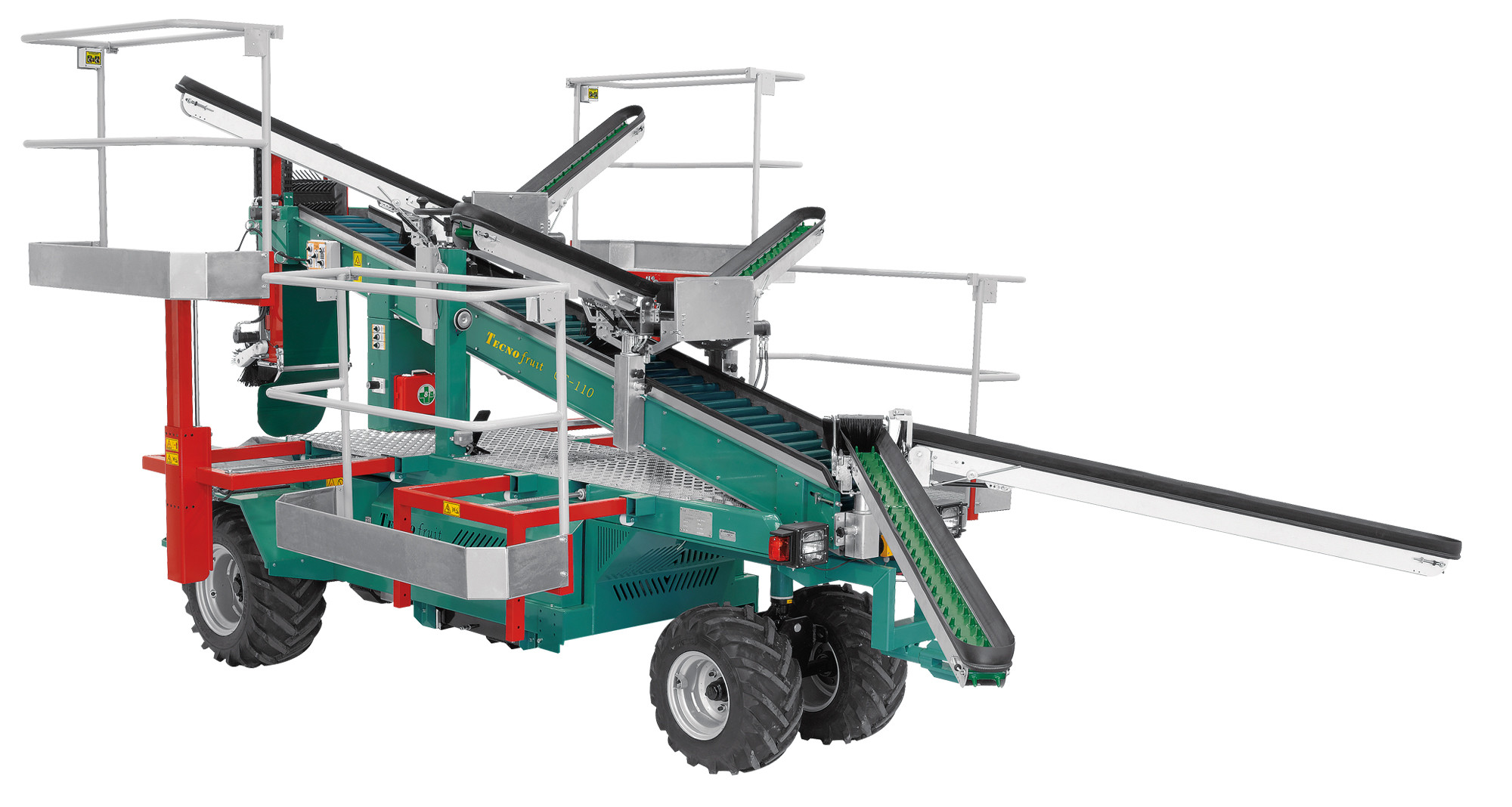

Tecnofruit CF-110
Machine suitable to manage plants with 3.60 to 4.50 m inter-row and maximum
height of 4.00 m. Designed to be multi-purpose, it has a rich standard equipment
(the automatic trailer and the air compressor for 6-8 shears are also
standard) that allows seasonal works. Equipped with a 4-cylinder diesel engine
it can reach even 10 km/h for transfers on an appropriate base.
height of 4.00 m. Designed to be multi-purpose, it has a rich standard equipment
(the automatic trailer and the air compressor for 6-8 shears are also
standard) that allows seasonal works. Equipped with a 4-cylinder diesel engine
it can reach even 10 km/h for transfers on an appropriate base.
The 4 generously sized side platform (measuring 1.38 x 0.40 m) make harvesting as easy as
possible. The main quality that distinguishes all TECNOFRUIT machines and the
great simplicity make these machines the ideal “partner” even for very large
companies.
possible. The main quality that distinguishes all TECNOFRUIT machines and the
great simplicity make these machines the ideal “partner” even for very large
companies.
| Engine | Lombardini 4 CYL |
| Type | Diesel 24.5 KW/ 33.3 HP |
| Ruote anteriori trazione semplice | 26x12.00-12” 8 pr |
| Ruote anteriori (4WD) | 31x15.50-15” 8 pr |
| Rear wheels | 31x15.50-15” 8 pr |
| Service brake | A pedale idraulico |
| Emergency brake/Parking brake | Hydraulic negative |
| Diesel tank capacity | lt 70 |
| Hydraulic oil tank capacity | lt 110 |
| Aux power | 12 V – 15 A |
| Aux | 12 V – 15 A |
| Speed | 0-10 km/h |
| Speed range | 2 + 2 con/mit inversor |
| Transmission | Hydrostatic |
| Steering control | Orbitrol |

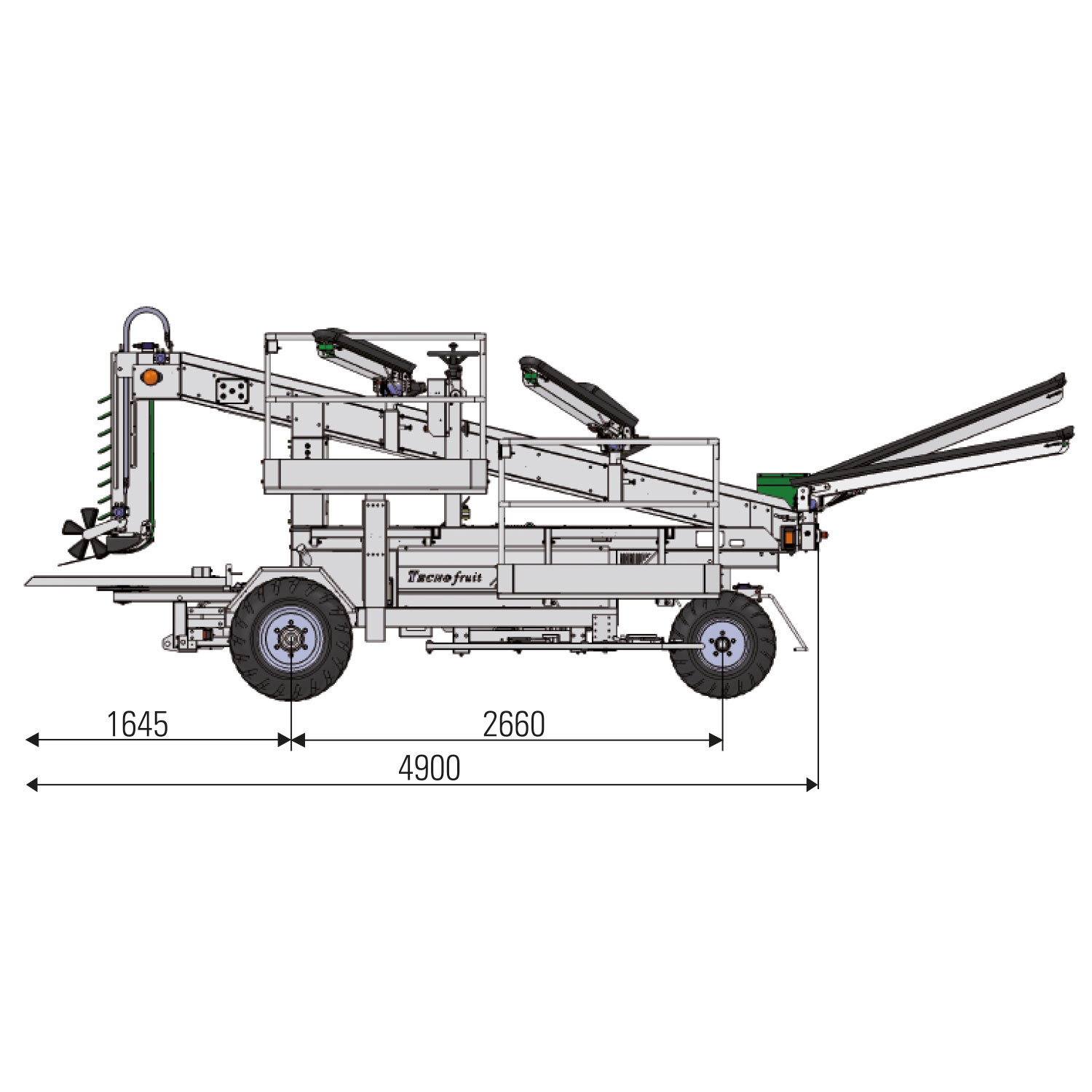

| Lenght (without bins trailer) | mm 4900 |

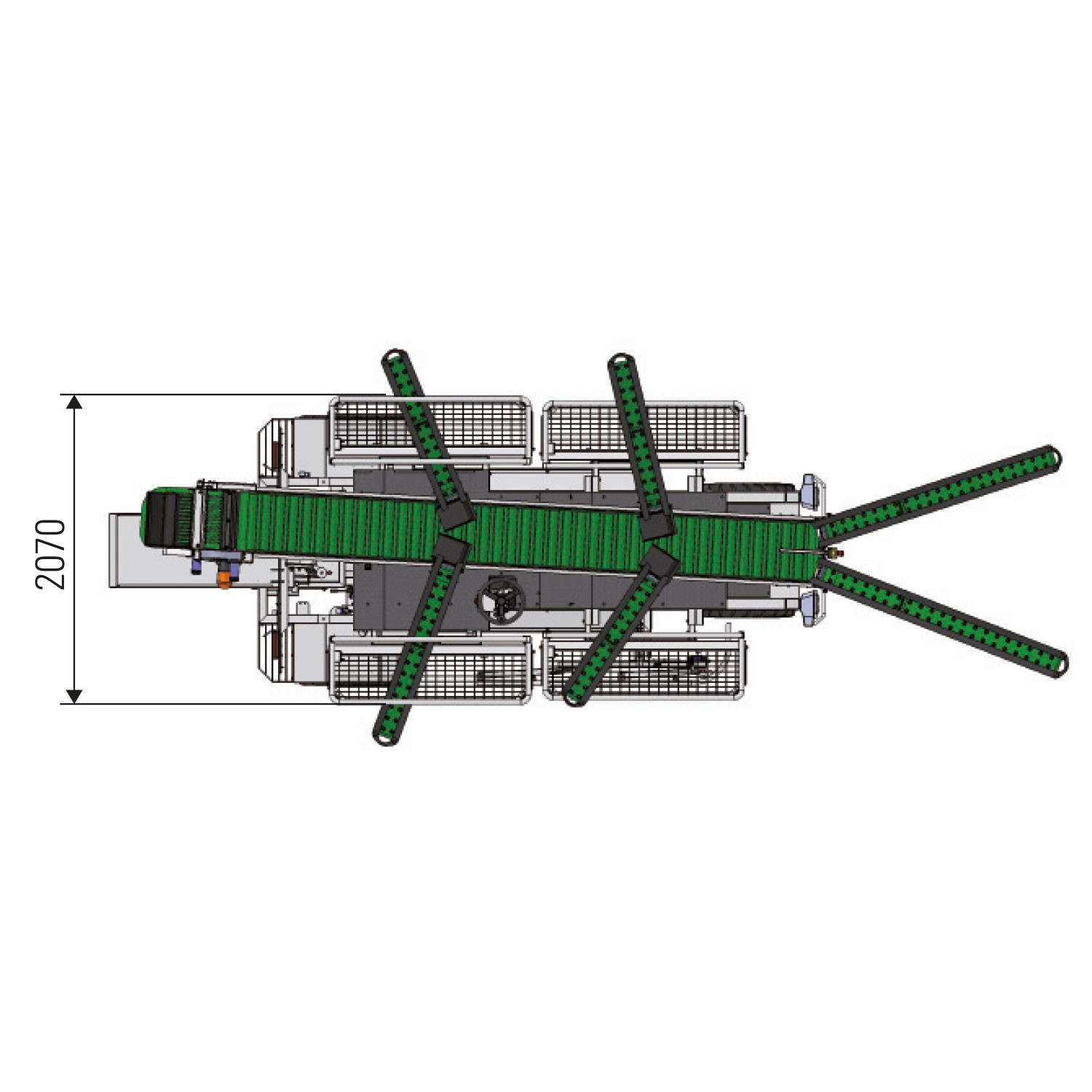

| Width (min/max) | mm 2070 / 3470 |

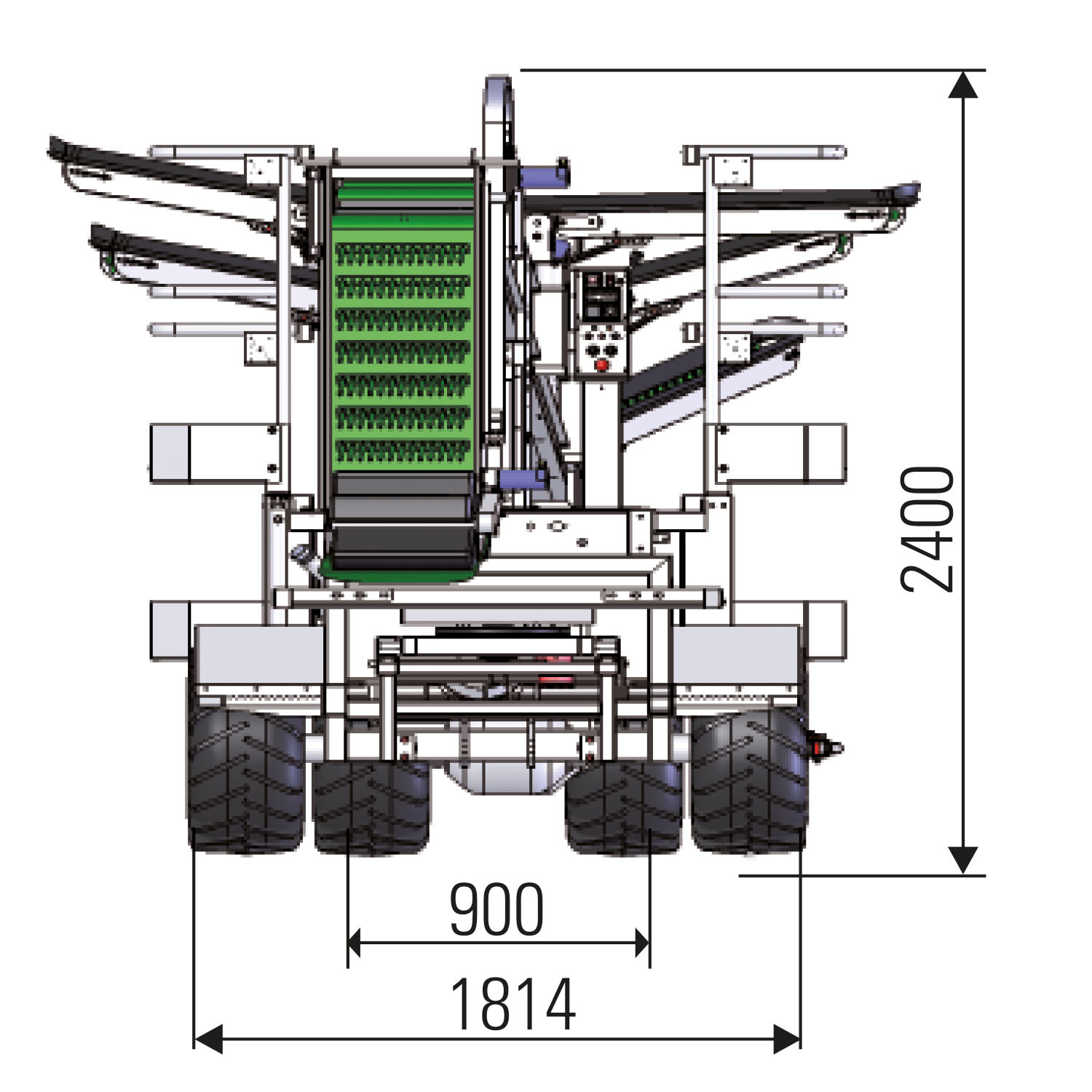

| Height (min/max) | mm 2400 / 2875 |
| Wheel base | mm 2660 |
| Ground clearance | mm 200 |

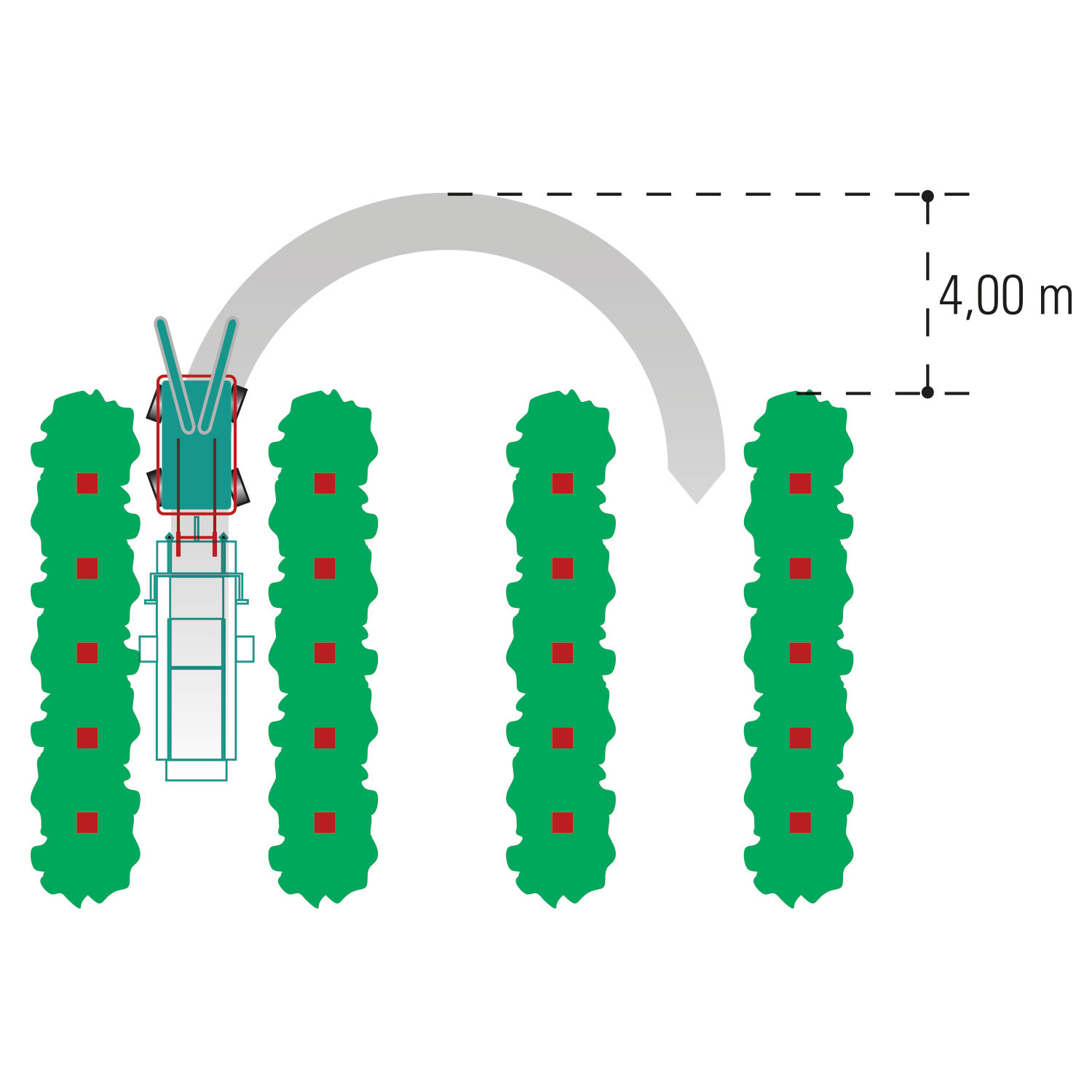

| Tourning radius | m 4,20 |
| Weight | kg 2355 |
O=Optional - nd=Not available - S=Standard
| 2 Pedane laterali 1,25x0,36 m e 2 pedane 0,80x0,36 m | S |
| Regolazione idraulica in senso orizzontale e verticale pedane posteriori | S |
| Regolazione idraulica in senso orizzontale pedane anteriori - meccanico verticale | S |
| Radiocomandi per regolazione pedane (433 Mhz) | S |
| Rimorchio automatico | O |
| 6 nastri raccoglitori laterali | S |
| Nastro centrale di accompagnamento | O |
| Trazione posteriore con differenziale autobloccante | - |
| Trazione 4WD | S |
| Guida automatica ad ultrasuoni | S |
| Guida idraulica con volante ed orbitrol | S |
| Contenitore frutta da industria | O |
| Barra di sollevamento anteriore | O |
| Compressore pneumatico 650lt installato all’interno della macchina | S |
| Forbici Pneumatiche e seghetto pneumatico | O |
| Pacchetto luci e freno idraulico a pedali | O |
| Freno negativo di stazionamento e di emergenza ad inserimento automatico | S |
| Pedana reti larghezza da 1,80 – 3,80 m; H=2,95 m; profondità 1,50 m | O |
| Impianto luci di lavoro | O |

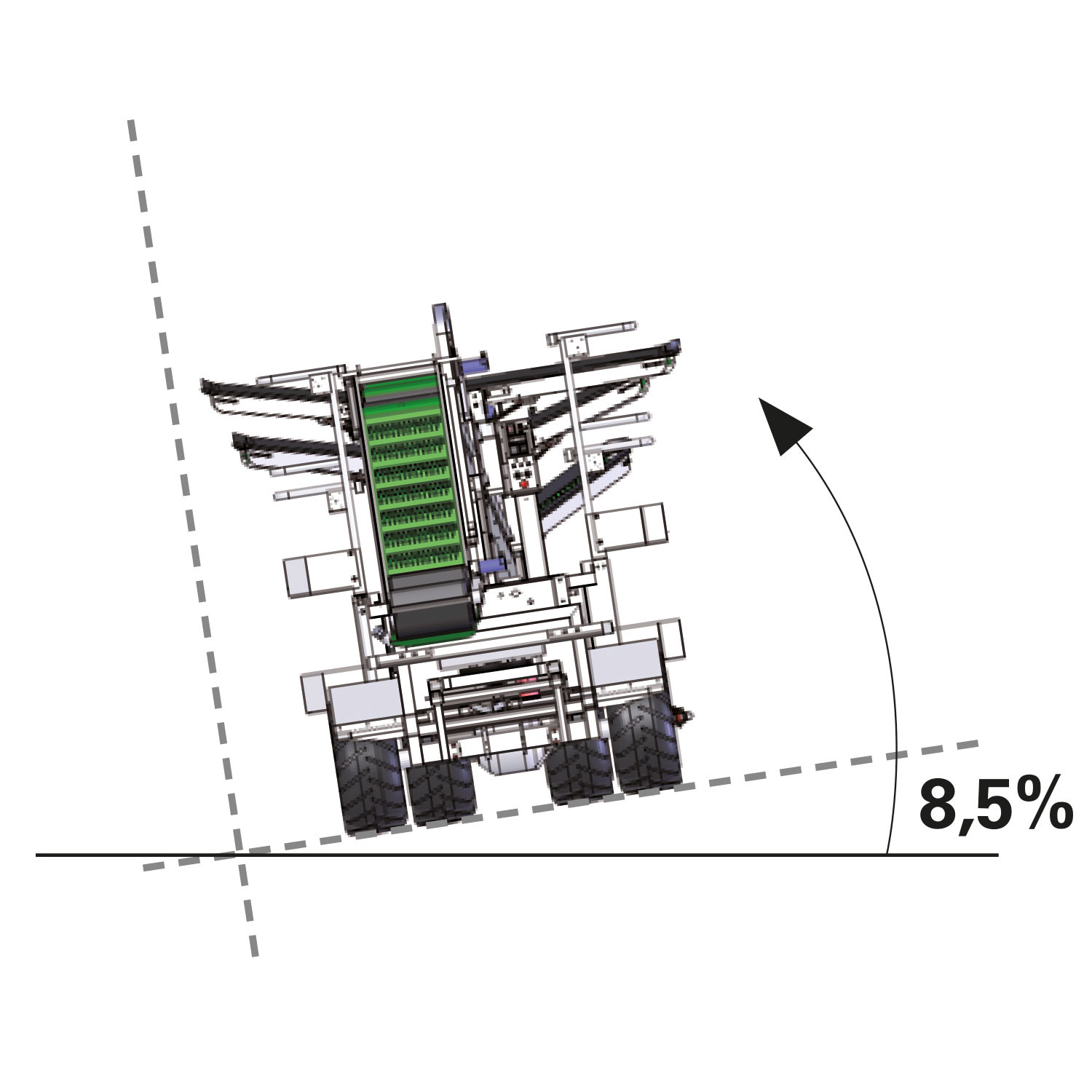

| Impianto per livellamento in senso laterale e longitudinale | S |
| Scarico dei bins pieni per terra e sul rimorchio automatico | S |
| Kit tavola bins e sollevatore speciale per rimorchio automatico per bins fuori misura (max 160x110 cm) | - |
| Profili guida in legno per tavolo girevole per bins in plastica senza traverso | O |
| Riempitore basso (per impianti anti grandine bassi) incluso gomme 23.00 - 10.50 - 12” | O |
O=Optional - nd=Not available - S=Standard
